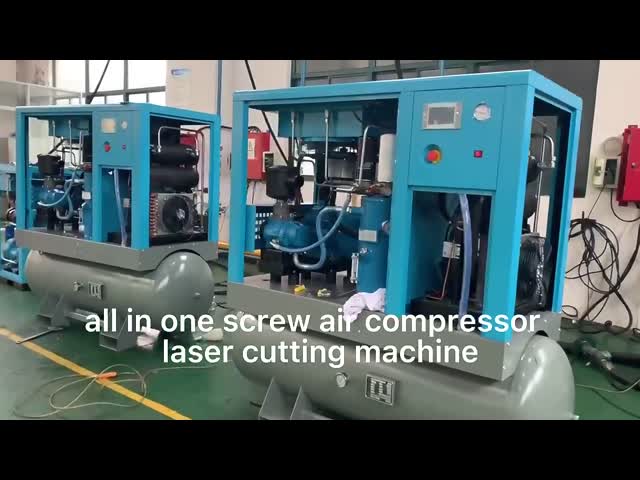

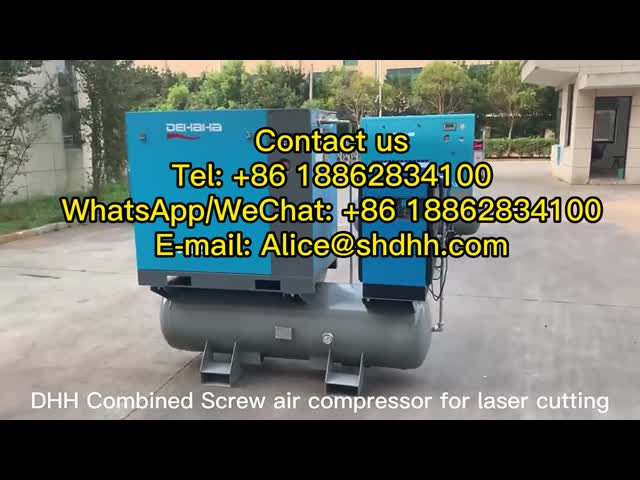

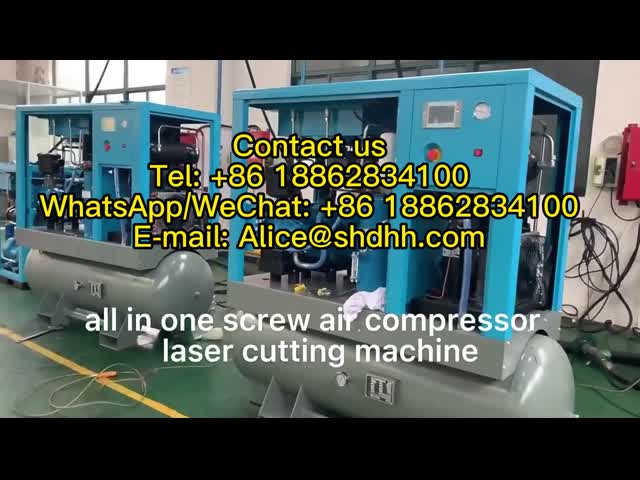

Piston 30 Bar 20hp Small Rotary Srew Type Air Compressor for Laser Cutting Machines
Model: DHH1230
Free air delivery: 1.2 m3/min
Working pressure: 30bar
Screw air end rotor lobe: 5:6
Control: PLC
Driven: belt
Cooling: by air
Electric motor: 20hp 15KW 380v/50hz/3ph IP54 grade
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Dimension:1650*1500*1970mm
Weight: 1300kg
Warranty: 24 months for the screw air end,12 months for the whole set compressor.
Advatages
1. Valve materials are made of Sweden stainless steel band.
2. In order to ensure that air compressor highly reliable, using a redundant design principles, setting multiple protection measures: unloading, down drain, exhaust, ensure that the zero-pressure start.
3. Timed drain valve: Drainage and drainage at a time interval can be adjusted. Ensure that the captain of an air compressor runs comtinuously between regular drainage, effectively preventing water too much liquid strike accidents.
4. Low exhaust temperature(10.0MPa exhaust air temperature ≤ 170 degrees, the temperature of exhaust air is above ambient temperature of 15-20 ºC from after - cooler).
5. Fuel consumption per hour less than 0.143/KW.
6. High reliability and long maintenance period, very low fuel consumption, low energy consumption and so on, greatly reducing the overall general operating costs.
Air end
The compression efficiency of piston compressor is high,and the process of gas compression of piston compressor belongs to closed system, and its compression efficiency is high. the adaptability of piston compressor is strong,and the exhaust volume of piston compressor is wide.
Control Panel
Real-time observation of the compressor operation status:Host, fans, exhaust gas temperature, exhaust pressure,power output, total electricityconsumption, fault messages, 24-hour customer service line. Multifunction Design: Data curve, parameter settings,device information, data query.
Freeze dryer
Choose the refrigerated dryer designed with aluminum alloy three-in-one plate heat exchanger, no pollution, high efficiency, high purity; universal choice, simple and reliable design, stable performance, no icing phenomenon, easy to install.

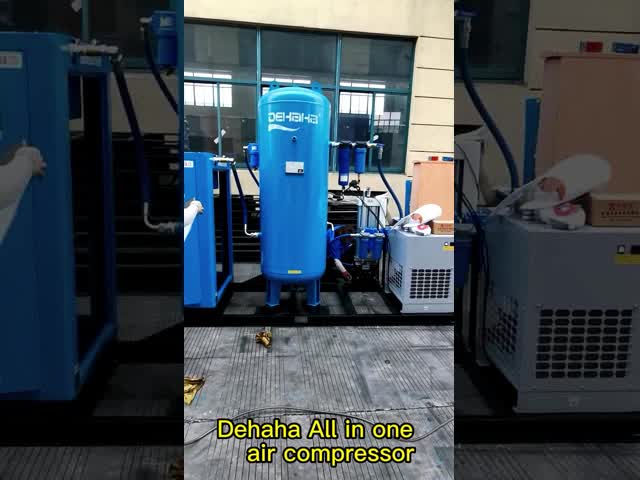

Air Tank
The gas storage tank can store a certain amount of gas, and the output air pressure is relatively stable, at the same time, it can reduce the temperature in the gas path and remove some water, dust and impurities. The gas storage tank adopts high quality material as raw material, uses advanced welding technology to work, and passes ISO9001 certification.
Technical Parameters
| Model | Capacity (m3/min) | Pressure(Bar ) | Power(kw) | Outlet diameter | Dimension(mm) | Weight(kg) |
| DHH1030 | 1 | 30 | 11 | G3/4" | 2080*1650*1970 | 1270 |
| DHH1230 | 1.2 | 30 | 15 | G3/4" | 2080*1650*1970 | 1300 |
| DHH1630 | 1.6 | 30 | 18.5 | G3/4" | 2450*1800*1970 | 1400 |
| DHH2030 | 2 | 30 | 22 | G3/4" | 2450*1800*1970 | 1460 |
| DHH2530 | 2.5 | 30 | 25 | G3/4" | 2450*1800*1970 | 1530 |
1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 24 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What's your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
