The air compressor specially designed for medium-pressure laser cutting is an integrated armored equipment developed by DEHAHA compressor for the sheet metal and laser industries. The system is equipped with 1~3m3/min@30bar/40bar compressed air, air tank 130L -1000L (optional), stainless steel plate for freeze dryer, lower pressure dew point, 5-stage precision filter, centralized electronic sewage, thereby ensuring the cleanness of the cutting gas source.
Product feature
1. Valve materials are made of Sweden stainless steel band.
2. In order to ensure that air compressor highly reliable, using a redundant design principles, setting multiple protection measures: unloading, down drain, exhaust, ensure that the zero-pressure start.
3. Timed drain valve: Drainage and drainage at a time interval can be adjusted. Ensure that the captain of an air compressor runs comtinuously between regular drainage, effectively preventing water too much liquid strike accidents.
4. Low exhaust temperature(10.0MPa exhaust air temperature ≤ 170 degrees, the temperature of exhaust air is above ambient temperature of 15-20 ℃ from after - cooler).
5. Fuel consumption per hour less than 0.143/KW.
6. High reliability and long maintenance period, very low fuel consumption, low energy consumption and so on, greatly reducing the overall general operating costs.
Free air delivery: 2 m3/min
Working pressure: 30bar
Screw air end rotor lobe: 5:6

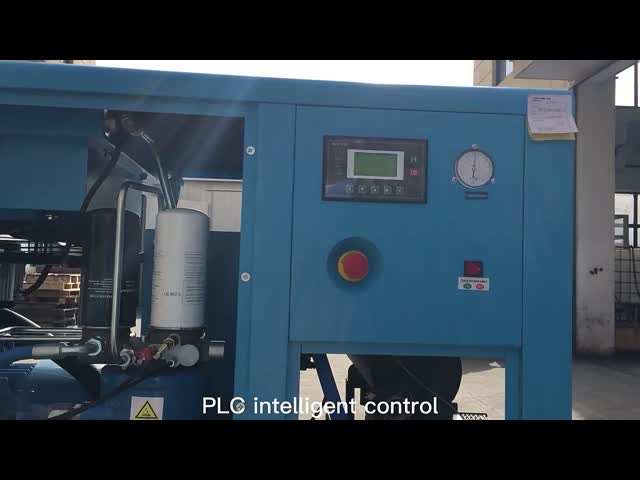

Control: PLC
Driven: belt
Cooling: by air
Electric motor: 30hp 22KW 380v/50hz/3ph IP54 grade
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Dimension:2200*1600*1970mm
Weight: 1460kg
Warranty: 24 months for the screw air end,12 months for the whole set compressor.
| Model | Exhaust pressure(Mpa) | Volume flow (m3 / min) | Power(kW) | Outlet diameter | Dimension(mm) | Weight(kg) |
| DHH1030 | 3 | 1.0 | 11 | G3/4" | 1650*1500*1970 | 1230 |
| DHH1230 | 3 | 1.2 | 15 | G3/4" | 1650*1500*1970 | 1300 |
| DHH1630 | 3 | 1.6 | 18.5 | G3/4" | 2200*1600*1970 | 1400 |
| DHH2030 | 3 | 2.0 | 22 | G3/4" | 2200*1600*1970 | 1460 |
| DHH2530 | 3 | 2.5 | 25 | G3/4" | 2200*1600*1970 | 1530 |
| DHH2040 | 4 | 2.0 | 25 | G3/4" | 2200*1600*1970 | 1530 |
| 2-DHH3030 | 3 | 3.0 | 37 | G1" | 2400*2900*1970 | 1750 |
